Quik-Latch QL-38 Series Hood Pin Set
The newest in hood pin offerings from Quik-Latch! Based on customer feedback and multiple requests, a push button hood pin set that is sized and priced directly between the QL-25 series Mini Quik-Latches and the larger full size QL-50 series hood pin kits is now available.
Designed with the import performance market in mind, the QL-38 series hood pin set deliver the same push button function that you've come to expect from Quik-Latch products while retaining serious holding ability that is required of hood pins. The reduced phyiscal presence of the 38 series hood pin kits ensures a clean and unassuming look that will blend in with your overall build.
Why install a hood pin made of substandard materials that could rust after just a few years? Go with Quik-Latch hood pins and make the finishing touch to your project car representative of the pride you have in your ride!
Hood pin features / specs

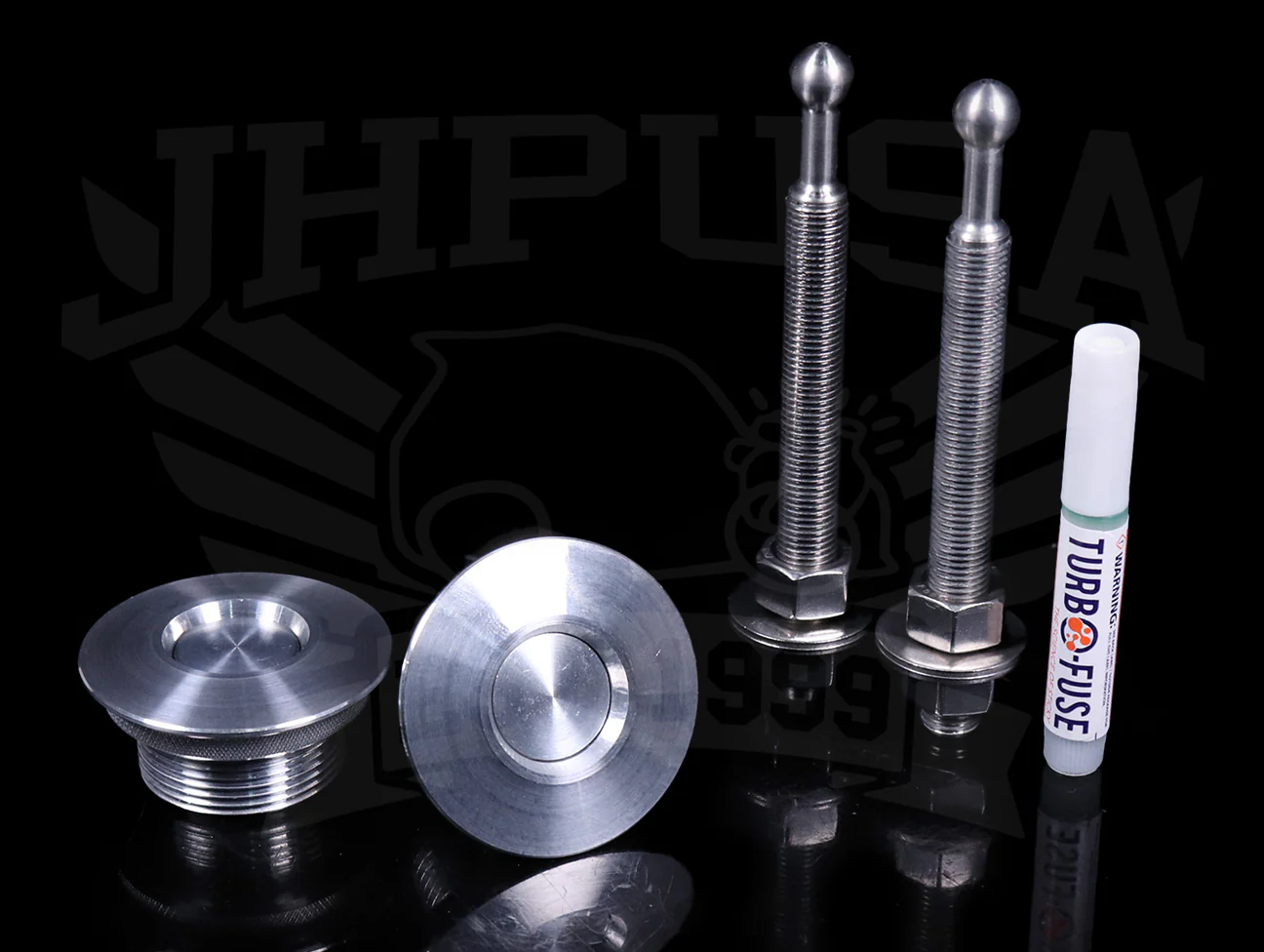

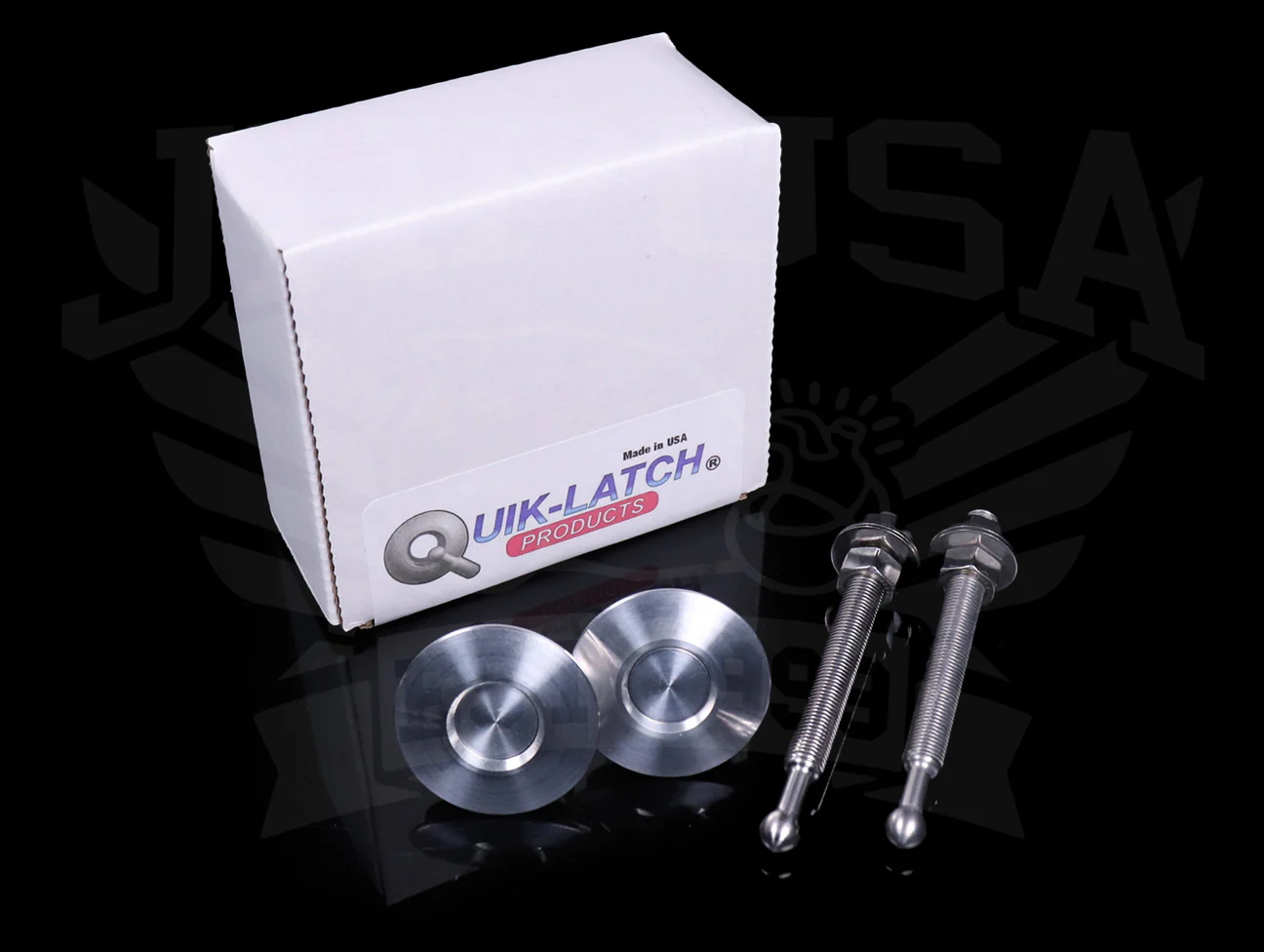

- Includes two 38-series latch and two stainless steel pins w/hardware
- Made from 6061 T6 aluminum & 303 stainless steel
- Holding force: 500lbs (per latch)
- Weight: 3.2 ounces
- Height: 22mm / .875"
- Height below mounting flange: 19mm / .750"
- OD of latch mounting flange: 44.5mm / 1.75"
- Hole size req. for mounting latch: 32mm / 1.25"
- Latch thread size: 1-1/8x24 UNEF
- Pin dimensions: 3/8" ball with 3/8x24 thread
- Retaining ring: 38mm/1.50" OD x 6.4"/.25" thickness
- Min. distance from top of mounting surface to mounting point: 28.50mm / 1.125"
- Max distance from top of mounting surface to mounting point: 88mm / 3.50"
- Max mounting angle: 18 degrees
- Distance needed to engage pin to latch: 17.5mm / .687"
- 1 x tube of turbo thread lock
- Made in the USA
Color/Finish options: Machine, Polish, and Black
Original: $124.54
-65%$124.54
$43.59Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The newest in hood pin offerings from Quik-Latch! Based on customer feedback and multiple requests, a push button hood pin set that is sized and priced directly between the QL-25 series Mini Quik-Latches and the larger full size QL-50 series hood pin kits is now available.
Designed with the import performance market in mind, the QL-38 series hood pin set deliver the same push button function that you've come to expect from Quik-Latch products while retaining serious holding ability that is required of hood pins. The reduced phyiscal presence of the 38 series hood pin kits ensures a clean and unassuming look that will blend in with your overall build.
Why install a hood pin made of substandard materials that could rust after just a few years? Go with Quik-Latch hood pins and make the finishing touch to your project car representative of the pride you have in your ride!
Hood pin features / specs
- Includes two 38-series latch and two stainless steel pins w/hardware
- Made from 6061 T6 aluminum & 303 stainless steel
- Holding force: 500lbs (per latch)
- Weight: 3.2 ounces
- Height: 22mm / .875"
- Height below mounting flange: 19mm / .750"
- OD of latch mounting flange: 44.5mm / 1.75"
- Hole size req. for mounting latch: 32mm / 1.25"
- Latch thread size: 1-1/8x24 UNEF
- Pin dimensions: 3/8" ball with 3/8x24 thread
- Retaining ring: 38mm/1.50" OD x 6.4"/.25" thickness
- Min. distance from top of mounting surface to mounting point: 28.50mm / 1.125"
- Max distance from top of mounting surface to mounting point: 88mm / 3.50"
- Max mounting angle: 18 degrees
- Distance needed to engage pin to latch: 17.5mm / .687"
- 1 x tube of turbo thread lock
- Made in the USA
Color/Finish options: Machine, Polish, and Black
